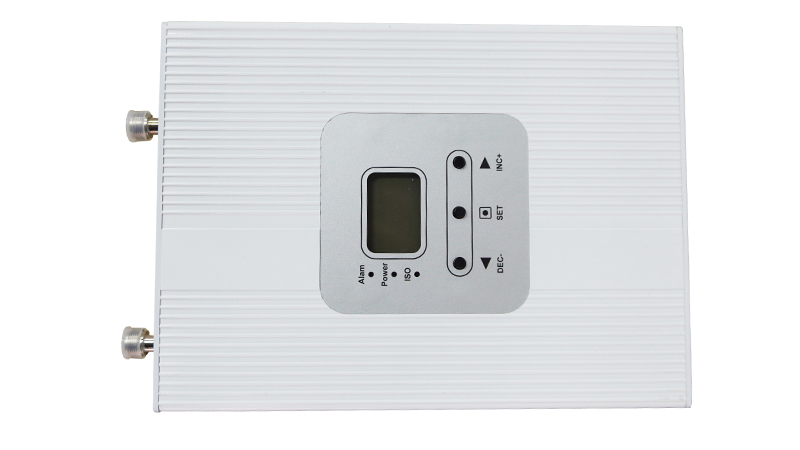

23dBm Five band LCD Signal Booster

23dBm Five band LCD Signal Booster

Model：

DS-5Band -23-L

23dBm 800Mhz

&E900Mhz&DCS& WCDMA&LTE2600

Five Band Signal Booster

Description：

Indoor Five Band Signal Repeater (Signal Booster) series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.

The signal booster improves mobile signals with no negative impact on human health.



Features：

1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.

Expansion and extending of the signal of base station.

Optimization of the quality of the signal and source
3. Cover about 3000~5000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.



Advantages:

Digital Display Panel, Intelligent mode setting
Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.

Set the technical parameters simple and efficient, this is easier than DIP Switch.



Standard Package:
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)



Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.

Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

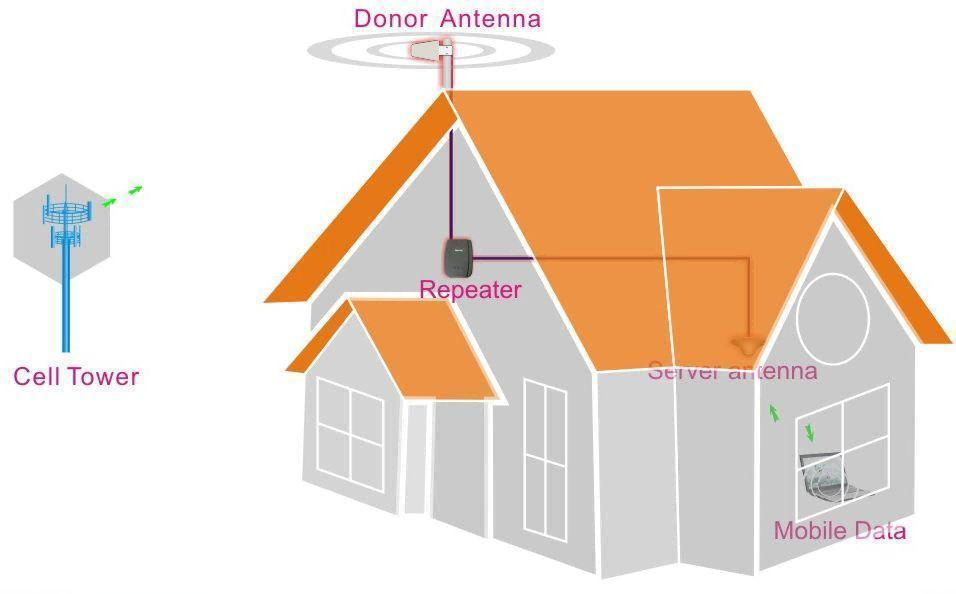

Application Diagram:



Specification.

Frequency Range			Uplink		Downlink
4G 800MHz			832-862MHz		791-821MHz
EGSM			880-915MHz		925-960MHz
DCS			1710 – 1785MHz		1805 -1880MHz
WCDMA			1920 – 1980MHz		2110 – 2170MHz
4G 2600MHz			2500 - 2570MHz		2620 - 2690MHz
Max. Gain			65dB±2dB		75dB±2dB
Max. Output Power			17dBm±2dBm		23dBm±2dBm
Band width			Wide Band
Manual Gain Control			31dB / 1dB Step
Automatic Gain Control			>30dB
Ripple in Band			8dB
Noise Figure			≤ 6dB
VSWR			≤ 2.0
Intermodulation Products	9KHz~1GHz		≤ -36dBm
	1~12.75GHz		≤ -30dBm
Spurious Emission	9KHz~1GHz		≤ -36dBm
	1~12.75GHz		≤ -30dBm
Time Delay			≤ 1.5 μs
Power Consumption			30watts
Frequency stability			≤ 0.01ppm
MTBF			> 50000 hours
Impedance			50 ohm
Power Supply			AC 90-264V,DC 12V/7A
Power LED			Power indicator
Alarm LED		Red	Self oscillation or Strong input signal
		Green	Normal
Mechanical Specification
RF Connector				N-Female
Switch				Power Switch
Cooling				Heatsink Convection cooling
Humidity				< 90%
Operating Temperature				-10°C ~ +55°C
Environment Conditions				IP40
Installation Type				Wall Installation
Size				220*280*60mm
Weight				3.6kg
