High integration Drone Signal Jammer Manpack style

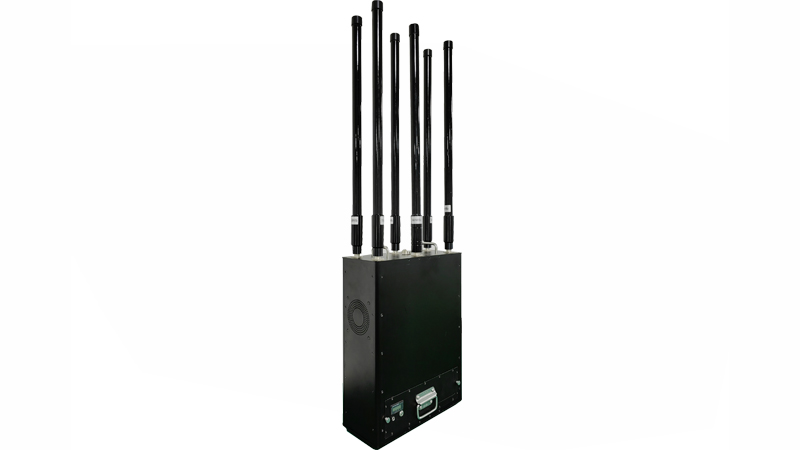

High integration Drone Signal Jammer Manpack style
Product Feature
1.High integration & Stable operation, Noise technology
2. Highly effective power &long jamming distance up to 1.5KM.
3. Separate control of each module, convenient operation.
4. High quality tubular radiator,effective in radiating heat.
5. Import components,VSWR protection,Overheat protection
6. No interference to nearby frequency bands
7.VSWR-disconnect/short antenna protection
Channel
Working Frequency
Output Power
CH1
900MHz
860-930MHz
46dBm
CH2
1.2GHz
1170-1280MHz
47dBm
CH3
2.4GHz
2380-2500MHz
47dBm
CH4
1.5GHz
1560-1620MHz
47dBm
CH5
5.2GHz
5150-5250MHz
47dBm
CH6
5.8GHz
5720-5860MHz
47dBm
Power Supply
DC24V ,25AH,Battery Replacable
Battery
25AH,40-50 minutes,Battery Replacable
Working Temperature
From -20°C to 70°C
Total Output Power
280Watts
Weight
22Kg
Size
580*400*260 mm
Directional Antenna
10-13dBi
