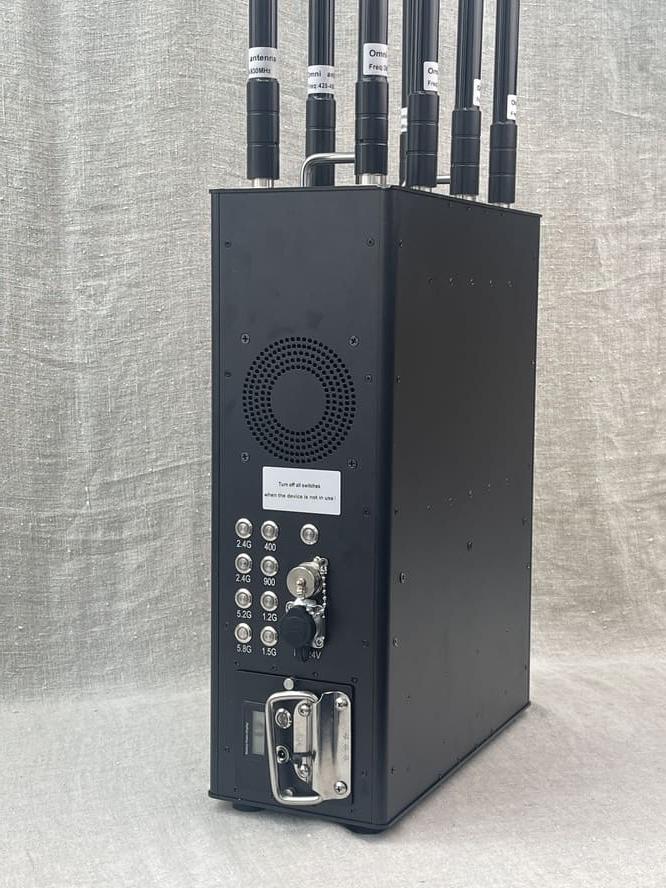

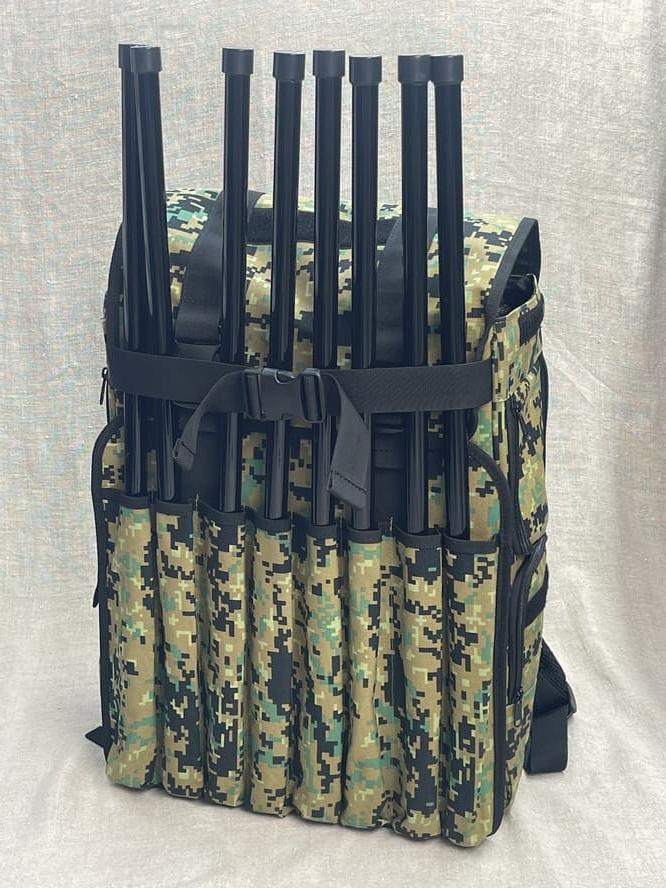

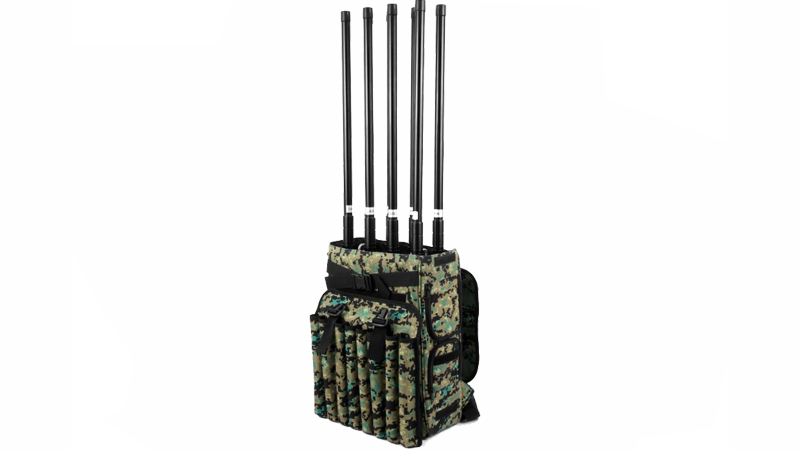

Device Dome Knapsack for UAVs Drone Signal Jammer 8 Antenna
Device Dome Knapsack for UAVs Drone Signal Jammer 8 Antenna
Product Feature
1.High integration & Stable operation, Noise technology
2. Highly effective power &long jamming distance up to 1.5KM.

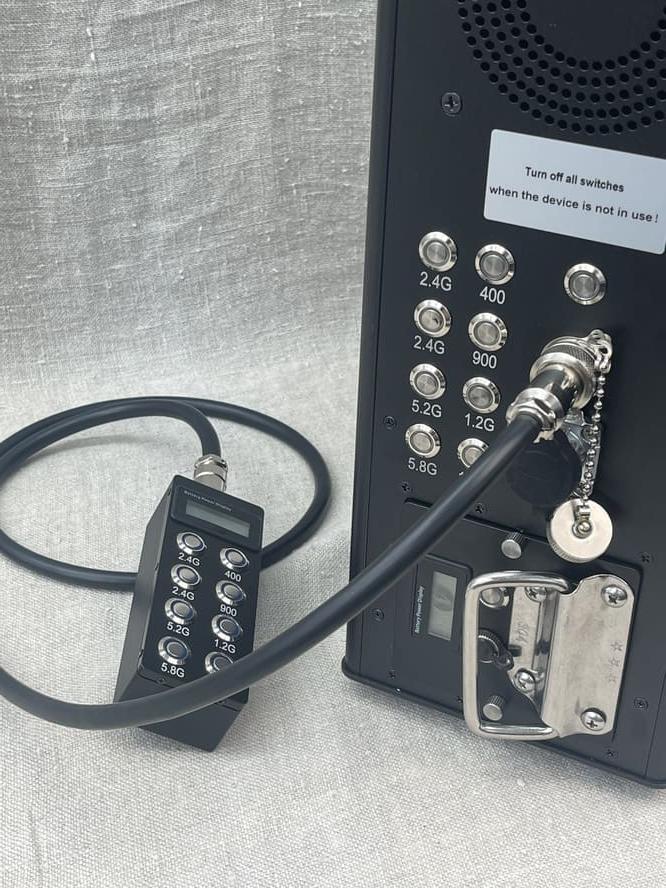

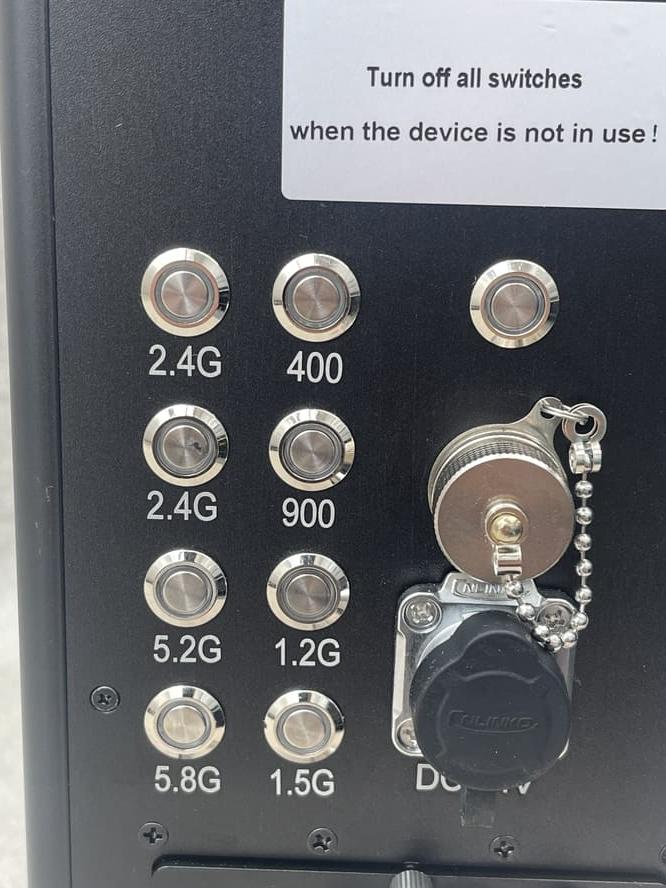

3. Separate control of each module, convenient operation.
4. High quality tubular radiator,effective in radiating heat.
5. Import components,VSWR protection,Overheat protection
6. No interference to nearby frequency bands
7.VSWR-disconnect/short antenna protection
Channel
Working Frequency
Output Power
CH1
433MHz
430-450MHz
43dBm
CH2
900MHz
860-930MHz
46dBm
CH3
1.2GHz
1170-1280MHz
46dBm
CH4
2.4GHz
2380-2500MHz
46dBm
CH5
1.5GHz
1560-1620MHz
46dBm
CH6
2.4GHz
2380-2500MHz
46dBm
CH7
5.2GHz
5150-5250MHz
45dBm
CH8
5.8GHz
5720-5860MHz
45dBm
Power Supply
DC24V ,25AH,Battery Replacable
Battery
25AH,40-50 minutes,Battery Replacable
Working Temperature
From -20°C to 70°C
Total Output Power
280Watts
Weight
22Kg
Size
580*400*260 mm
Directional Antenna
10-13dBi
